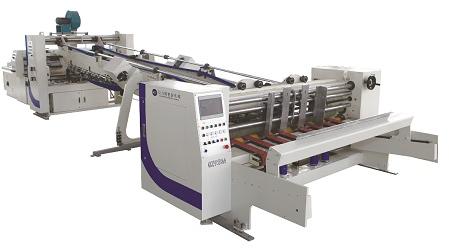

Automatic Bottom Folder Gluer QZ1227

Paper feeding part
̢Ѡvacumm suction paper feeding straightly;
̢Ѡheight of back gauge paper supporting is adjustable, and can adapt to the bending board.
Gluing part
̢Ѡglue box elastically floats to fit the glue wheel without leakage.
̢Ѡit selects and uses imported qualified pump and is durable.
̢Ѡoptional to use heat insulation glue barrel to keep the best operating temperature, and it works at any time even in winter.
Folding part
̢Ѡconvenient to adjust guide bar of paper folding to reduce time while changing sheet;
̢Ѡfolding arm underneath is rigid, which will not induce jitter when hardboard passes.
̢Ѡbottom folding belt on both sides adopts stepless speed regulation, which can reduce fishtail.
̢Ѡ right angle correction function to improve the precision of sticking box,
̢Ѡstrengthening the function of indentation
counting & ejecting part
̢Ѡlong time for sorting out is favorable to improve precision for box sticking.
̢Ѡdelivering paper from the bottom is stable and not easy to break down.
Model qz1227
paperboard type 3~5 ply corrugated cardboard abcabac
paperboard size minimum: 260*720mm
maximum: 1200*2740mm
paperboard thickness 2-8mm
max. Speed 120mmin
dimension 3.6 * 4.2 * 2. 3m
gross power 18kw
weight 11t
stacking number 10,15,20,25,30
power supply 380v±10v 3 phases 50hz ± 1 hz
air source pressure 0.7-0.9 mpa, air demand not less than 0.5 m³ min
glue ordinary glue or white latex (vinyl acetate)
