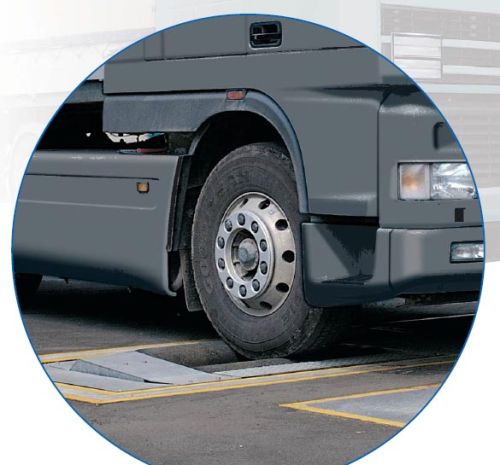

We are one of the prominent Exporters and Suppliers of Automatic Brake Tester. The highly reliable Automatic Brake Tester is widely used for testing the brake system of automobiles. The Automatic Brake Tester is available as per customers̢۪ specifications at the market leading prices. Owing to user friendliness, precise design, durability and low maintenance Automatic Brake Tester is highly in demand among our customers.
Technical Features
| Technical Data | Unit | RT615 | RT622 | RT630 | RT630 | N | P | N | P | F | FP | N | P | F | FP | VF | VFP |
| Max. transit weight per ax | kg | 16000 | 20000 | 20000 | 20000 | |||||||||
| Max. test weight per axis | kg | 13000 | 15000 | 16000 | 15000 | |||||||||
| Motor | kW | 2x10 | 2x15 | 2x20 | 2x7,5/15 | |||||||||
| Power supply | - | 3ph 400V-50Hz | ||||||||||||
| Max. braking force | kN | 30 | 40 | 50 | 7.5/40 | |||||||||
| Test speed | km/h | 2,2 | 2.6/5,2 | |||||||||||
| Roller diameter | mm | 242 | ||||||||||||
| Roller lenght | mm | 1100 | ||||||||||||
| Outside roller distance | mm | 3000 | ||||||||||||
| Height difference of rear roller | mm | 50 | ||||||||||||
| Roller Covering | - | (A) | ||||||||||||
| Coefficient of Friction | - | >0,6 | ||||||||||||
| Max. wheel diameter | mm | 1500 | ||||||||||||
| Min. wheel diameter | mm | 500 | ||||||||||||
