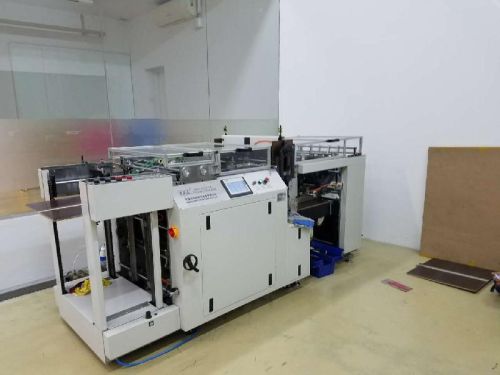

Automatic Calendar Hole Punching Machine SPB550

Automatic calendar hole punching machine spb550
description:
automatic hole punch machine spb550 is used in print facotry for doing hole punch or perforate work.could finish paper hole punch,calendar hole punch,and cardboard hole punch.
wide range punch functon,with 1 machine could finish almost 3 production.will be your good helper in wire o,double wire,twin ring wire,double o,spiral wire productions' produce.
with two knife feeder make you feeder paper smoothly and accurate,avoid paper appearance have scratch when feeder paper.
With suction nozzle,it could feeder cardboard or hardcover,punch one by one.
technical information:
max.sheet 550mm x600 mm
min.sheet 120mm x 100 mm
max punching thickness 3mm
weight of paper 60 - 350 gsm
punching speed up to 7200 punch times hour
the max height of paper feeder 500mm
power 3ph 380v 50hz(other voltage on request)
main motor power 3kw
dimension 2.2 m x 1.3 m x 1.2 m
net weight 1600kg
advantage :
1. It’s wide applied for punching different paper size, max punching width 550mm and 3mm thickness of hardcover or cardboard.
2. Easy operation and high safety with protect cover and emergency stop.
3. To make special punching hole is available for the customer’s request within the size of paper.
4. High quality for punching without deckle edge and accurate punching position.
5.use two knife feeder when do paper,use suction nozzle to feeder cardboard
