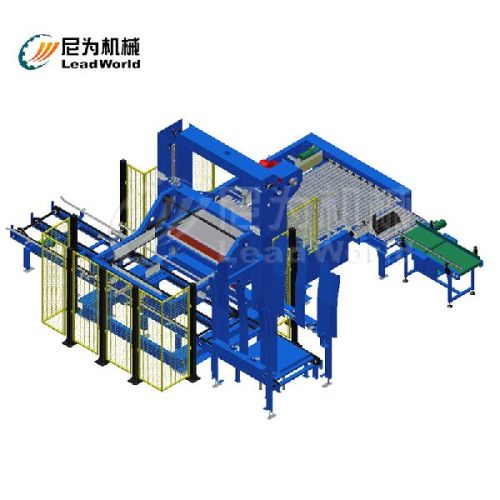

Automatic Carton Palletizer

Main Feature:
Structural framework is welded. strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, entry speed conveyor belt to separate infeed case, stack is delivered by roller conveyor. 2.5m length of conveyor to output the stack. All adopt roller conveyor. Adopt German Siemens PLC controlling system, movable and can connect to computer. Will display the fault automatically.
working process:
Can finish the follow process automatically:Input carton, turn over carton, separate the carton into one line and another line, stack, move stack, input stack, output stack.
Equipment specification:
Automatic servo palletizer, delicate and cabinet, small footprint, small noise and pollution; adopt four-axis servo controlling system, pallet form clear and beautiful. Apply to cartons, film bag, plastic crate products such as pallet, application in food, condiment, beverage, cosmetic, pharmaceutical, electronics and other industries.With panasonic servo motor, Siemens PLC, danfoss frequency converter, SMC pneumatic components sent agtech electrical components such as vacuum suction cups, to ensure the reliability of the system hardware
Feature:
Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number of carton sequence stacking, pallet supply and discharge can be programmed to control.
the symmetry and compact structure design, suitable for the narrow space of the existing production sites.
Taken the pallet database is big, can accommodate 15 empty pallet, which can realize automatic supply pallet.(pallet library is optional)
needn’t change the stacking parts can complete several stacking way, only need to obtain the parameters is OK.
