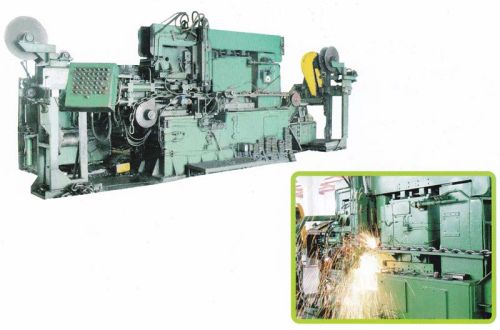

Automatic Chain Butt Welding Machine

We are offering Automatic Chain Butt Welding Machine,
This welding machines are following the most advanced ENGLAND technology and our independent research development,which is the high efficient full automatic chain FLASH welding machine,use for the big size alloy steel wire chain welding production.The machine includes the chain transmission unit;chain link clamping unit;pre heating unit;flash welding and up slider unit;servo welding control,unit;hydraulic deburring unit;PLC control system. The construction of this machine is very compact,with more safety and reliable working,high speed welding in full automatic,is the best choice for the big size steel chain welding production.
Technical data
Model LUN450
Suitable wire diameter 20-36mm
Chain pitch 2.7-5.0 times of wire diameter
Productivity 5-10ringsmin
Welding Transformer Power 450KVA, 50Hz
Motor Power 36KW
Cooling water consumption 18Lmin, 15 centigrade
Machine dimension 7100 x 3000 x 2600mm
Machine net weight 14T
other welding wire Dimater: 2-6mm,6-11mm, 11-13mm, 13-18mm,18-22mm,22-26mm...
