Contact SupplierWe are offering automatic chain resistance welding machine,.

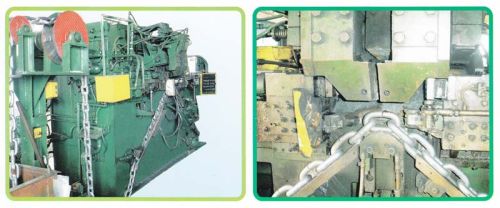

This welding machines are following the most advanced england technology and our independent research development,which is the high efficient full automatic chain flash welding machine,use for the big size alloy steel wire chain welding production.the machine includes the chain transmission unit;chain link clamping unit;pre heating unit;flash welding and up slider unit;servo welding control,unit;hydraulic deburring unit;plc control system. The construction of this machine is very compact,with more safety and reliable working,high speed welding in full automatic,is the best choice for the big size steel chain welding production.
technical data
model lun350
suitable wire diameter 16-24mm
productivity 8-20ringsmin
welding transformer power 350kva, 50hz
motor power 7.5kw
machine dimension 4500 x 3500 x 2500mm
machine net weight 11t
other welding wire dimater: 2-6mm,6-11mm, 11-13mm, 13-18mm,18-22mm,22-26mm...
