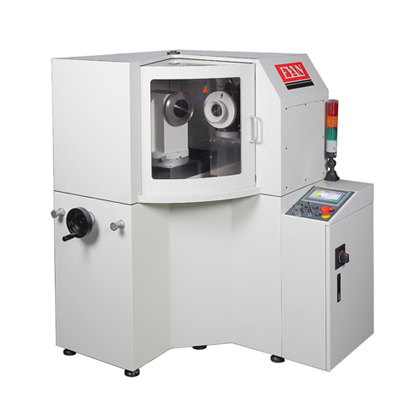

Automatic Circular Saw Blade Grinder

Cnc circular knives & slitter knives grinding machine (cvh 500d)
circular knives grinder with precise snuciure design and user-friendly design can have further adjustments on forwarding cutting even after closing the splash guard.
It is much safer and reduces noses greatly - a precise and environmental machine.
Cvh·500 cnc is an up-to-date circular knives grinder wilh the most advanced design in its appearance and structure. It also owns a number of patents from taiwan, u.s. And europe。
specification table:
measurements standard accessories
grinding rangecircular knife diameter : ø30 ~ ø500 mm fully enclosed splash guard : 1 pc
swivel angle : ±90º coolant system : 1 set
knife rotational speed : 175 rpm saw blade clamp ø90 mm : 1 set
z-axis ac servo motor : 400 w
saw blade clamp ø130 mm : 1 set
x-axis to and from : 18 mm min working lamp : 1 set
actual grinding wheel diameter : ø120 mm ~ ø200 mm plane grinding wheel : 1 pc
grinding wheel inner diameter : ø31.75 mm flange : 1 set
grinding wheel motor : 0.75 kw tool box : 1 set
grinding wheel rotation speed : 1000 ~ 4500 rpm lubrication system : 1 set
cooling system motor : 16 hp -
installation power : 2.0 kw -
net weightgross weight : 990 1135 kg -
packing damensions : 148*173*200 cm -
