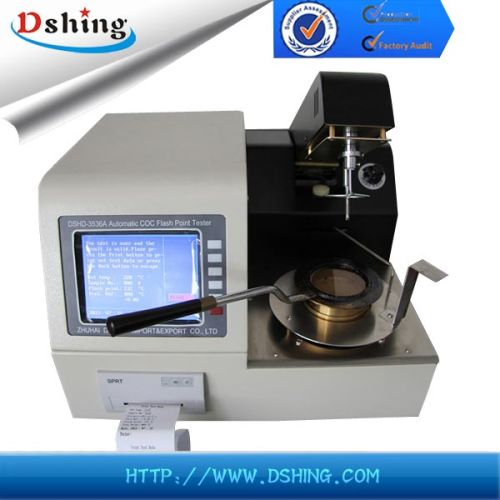

Automatic Cleveland Open Cup Flash Point Tester

We are offering automatic cleveland open cup flash point tester.
A:brief description:
dshd-3536a automatic cleveland open cup flash point tester is designed according the standards gbt3536-2008 test method for flash point and fire point of petroleum products - cleveland open cup method, astm d92 and iso 2592.
dshd-3536a automatic cleveland open cup flash point tester is applies to determine the flash point and fire point of petroleum products which the flash points higher than 79 ℃ except fuel oils.
B:main advantages:
1. This instrument adopts lcd screen to display and full english man-machine interface. It can preset expected flash point temperature, sample mark number, barometric pressure and other parameters. It has menu prompt and input guide.
2. It adopts simulation tracking to display the function curve of temperature rising and test time. It has the functions of english mis-operation prompt, test date, test time and other parameters.
3. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.
4. Differential coefficient detection. Automatically correct the system deviation.
5. Automatically open the lid, detect the flash point and print test data. The test arm automatically rise up and lower down.
6. Beautiful design, safe and convenient to operate.
C: main technical specifications and parameters
1. Power supply： ac220(-10%～+5%)v 50hz
2. Temperature measurement：
range：room temperature～400℃
repeatability：≤8℃
reproducibility：≤17℃
accuracy：0.1℃
3. Heating rate： accord with gbt3536 and astm d92
4. Ignition mode： gas flame 3.2mm～4.8mm
5. Ambient temperature： (10～40)℃
6. Relative humidity： ≤80%
7. Total power consumption： ≤400w
8. Overall dimension： 410mm×360mm×310mm
