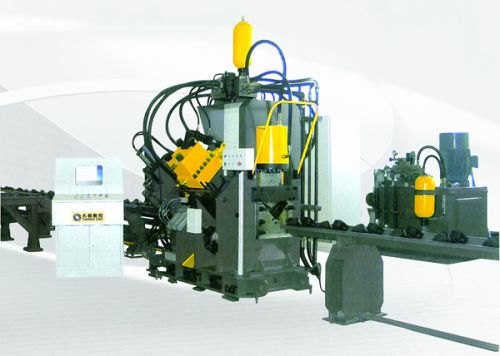

Automatic CNC Angle Line Machine

₹ 89.50 / 100000 100000 Set

MOQ1 Set(s)
Feeding speed (m/min)40
Max. diameter(mm)Φ26×20（thickness）
Punching force(KN)1000
Angle size63×63×4～200×200×20
Servo motorSGMGH-13ACA61
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Max. diameter(mm)Φ26×20（thickness）
Feeding speed (m/min)40
Angle size63×63×4～200×200×20
Servo motorSGMGH-13ACA61
Punching force(KN)1000

We are offering automatic cnc angle line machine.
Product feature
adopt cnc technology, servo motor infeeding, with high efficiency, stable workpiece precision.
Key hydraulic, pneumatic and electric parts all imported.
Easy programming and can directly use the program data made by lofting software.
Computer with chineseenglish interface, easy operation, and can display the drawing of workpiece.
All marking, punching and cutting in automatic completeness, all finished angles can be unloaded by pneumatic turnover device and via motor driver so as to lighten the working strength of workers with well advantages than other manufactures.
Only need to input size of workpiece, diameter of holes, stadia and quantity of workpiece when edit program, or use cadcam direct conversion.
The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
With avoided shearing functions, so as to process fixed-length angles.
With self-diagnosis failures function.
