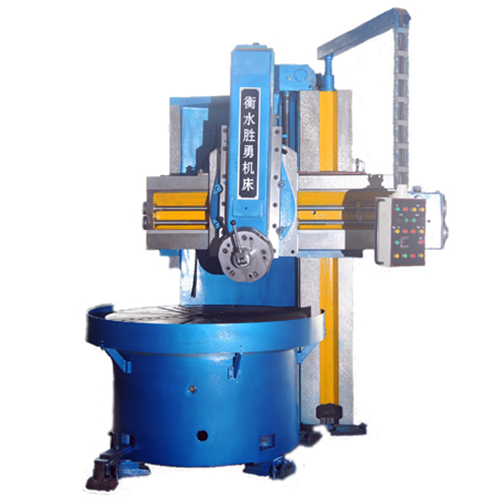

Automatic CNC Vertical Turret Lathes VTL Machine CK5125

Product name :Automatic CNC vertical turret lathes VTL machine
Application fields of Automatic cnc vertical turret lathes CK5125
Turning inner&outer cylinder surface,cone surface, grooving, drilling,tapping and process machining can be carried out.
Automatic CNC vertical turret lathes VTL machine model:
CK5112CK5116CK5118CK5120CK5123CK5125CK5126
CK5225CK5232CK5240CK5250CK5263 CK5235
Technical specification of Automatic cnc vertical turret lathes CK5125
1 Table diameter 2300 mm
2 Maximum turning diameter 2500 mm
3 Maximum height of workpiece 1350 mm
4 Maximum weight of workpiece 10 t
5 Speed change of table 2.5-80 rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 1600 mm
Vertical travel of tool post 915 mm
10 Horizontal travel of side cutter bar 750 mm
Vertical travel of side cutter bar 1100 mm
11 Crossrail travel 850 mm
12 Maximum section scale of tool bar 35×45 mm
13 Power of main motor 45 kw
revolutions 1470rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Rapid travelling speed of tool post 2000 mmmin
16 Machine weight 23 t
17 Overall dimensions(L×W×H) 3450×3430×4100 mm
