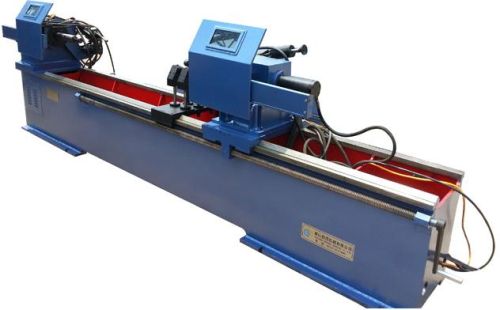

Automatic CO2 Auto Welding Machine, Brand Name : HL China techpart

₹ 21.27 Lakh / Piece

MOQ1 Piece(s)
Brand NameHL China techpart
Dimension(L*W*H): 4.2*0.5*1.150m3
ConditionNew
Power18.1x2(double)KVA
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2011

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerPipe Welding Machine
Brand NameHL China techpart
Availability2200KGS
Country of Origin16V-36V
ConditionNew
ApplicationWelding
Power18.1x2(double)KVA
Dimension(L*W*H): 4.2*0.5*1.150m3
Total Carbohydratewithin one year after order.
After-Sales Service ProvidedOverseas service center available
Welding AreaPipe Welding Machine
Spindle speed1~6r/min
Horizontal thrust cylinder travel50mm
Output voltage60~350A
Rated capacity18.1kVA×2
Hydraulic cylinder travel for workpiece lifting120mm
Rated duty cycle50%
Gas flow10~25L/min
Applicable wire diameterΦ1.0~Φ1.2mm
Applicable workpiece diameterΦ60~Φ250mm
Applicable workpiece length200~2200mm 200~2600mm
Power inputSingle phase 380V50Hz
Torch right-and-left oscillation±45°
Model NumberNZC 2*350KR 260
Torch feeding cylinder travel0~4MPa

2 X 350 KRNZC automatic CO2/MAG auto welding machine adopted with imported programmable controller (PLC) as the core of the control system instead of traditional relay logic control circuit, which improved equipment reliability scope and work efficiency greatly.
The machine using CO2, Ar + CO2 + O2 etc, as the welding protective gas or drug core welding wire +CO2 protective welding method when working. With H08Mn2SiA welding wire from 1.0~ 1.2 mm, the flat ring welding line and the angle of inner (outer) girth welding line of the hydraulic oil cylinder, fire equipment, belt conveyor roller, automobile drive shaft rotary could be welded. The welding process of the machine is automatic. This type of automatic welding machine a high degree of automation, high efficiency and high welding quality machine, and it also greatly reduce the labor intensity of welders.
