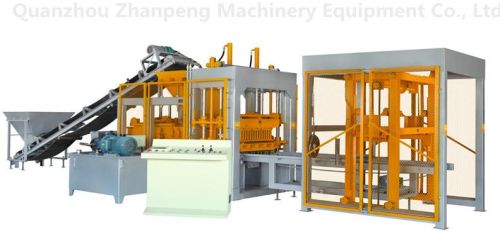

Automatic Concrete Block Machine, Brand Name : ZHANOENG

We are offering fully-automatic concrete block making machine
as a “national inspection-free product”, zhanpeng block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance, permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.
Qt5-15
technical data:
1) size and output of major products:
a) hollow blocks: 390*190*190mm,5pcsmould
b) perforated bricks: 240 x 115 x 90mm, 16pcsmould
c) solid bricks: 240 x 115 x 51mm,34pcsmould
d) color floor tile: 200 x 100x 60mm,18pcsmould
2) pallet size: 1100x 560x20mm
3) cycle time: 15 - 23 seconds
4) type of major vibration: table vibration
5) vibration frequency: 3800 - 4500 timesminute
6) rating pressure:25mpa
7) profile size (including pallet delivering device and green block delivering device):9450 x 3300 x 2700mm
8) weight: 6900kg.
After-sales service:
1. Provide one-year free warranty and life-long service;
2. Assist users to formulate production formula;
3. Set up completed users’ data and provide a better follow-up service;
4. Supply spare parts and moulds;
5. Provide online interaction platform with customers on the internet and remove troubles for customers at any time;
