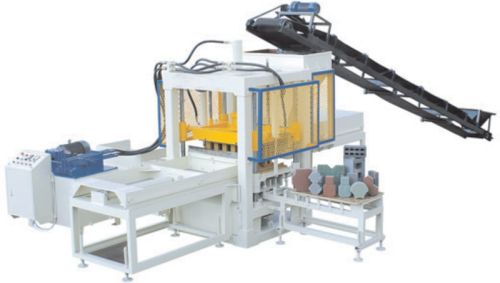

Automatic Concrete Block Making Machine

The company is a well-known Exporter and Supplier of Automatic Concrete Block Making Plants. Catering to the demands from almost 60 countries with effortless ease, the company offers after-care services as well. The Automatic Concrete Block Making Plants produce concrete blocks, fly ash blocks, solid/hollow/paving stones, stabs, curbstone, grass blocks, slope blocks and interlocking blocks. The Automatic Concrete Block Making Plants are widely used in building, road paving, squares, gardens, parks, landscaping and city constructions etc.
Highlights Of Automatic Concrete Block Making Plants
Capacity : 10,000/15,000/20,000 Blocks per shift.
Require minimum maintenance
Continuous performance.
Output and cycle time referred for 230×110×75 mm blocks and varies from type to type
Raw Materials Used
Crushed stone
Sand
Cement
Dust and coal fly ash
Cinder
Slag
Gangue
Gravel
Perlite
Other industrial wastes
Automatic Concrete Block Making Plants Includes
Auto weighing system
3 way bin material batcher
Silo for fly ash or cement storage
Pan conveying rails
PLC for electro mechanical process
Block Sizes Produced
230×110×75
200×100×60
400×200×200
400×150×200
225×112.5×60
Also Available
Automatic Control Panel : Higher stability and adaptability. Can adapt different countries environment and temperature, with trouble shooting function. Can save various recipes to save cost & time.
Hydraulic Station : Double high dynamic proportional valve to control oil flow and pressure, decrease strike for cylinder & guaranteed production
Double Vibration Motor : Advanced vibration motor for improved vibration force, which increases block strength, production capacity and density.
Carburization of Mold : Carburization of block molds for good strength and keep inside tenacity and outside hardness.
Block Stacking : Integrated block stacker for easy conveying of freshly manufactured blocks.
Colored Pavers : Can manufacture all kind of pavers in any dimension and in any color.
