Automatic Connecting Conveyor

₹ 11.75 Lakh / 14500 14500 Set

MOQ1 Set(s)
ConditionNEW
ApplicationFurniture, door, Wardrobe, cupboard, floor, decoration, building insulation, etc.
Number Of FlowerConveyor
Model NumberTSD
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Senlian Automatic Coating Machinery Company Limited

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 1997

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerConveyor
ApplicationFurniture, door, Wardrobe, cupboard, floor, decoration, building insulation, etc.
ConditionNEW
After-sales Service ProvidedOverseas installation and commissioning of Engineers
Place of OriginChina
Driven TypeMechanical
Brand NameSENLIAN
Model NumberTSD

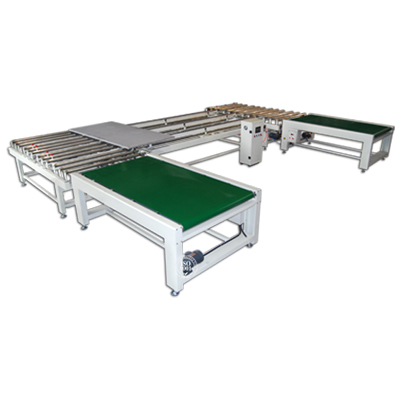

Turning and connecting conveyor
function: it applies three rubber roller conveyors to turn the board from one uv coating line to the other paratactic.
The one side conveyor can automatic convey and lift the board, then pass it to the middle conveyor when they get the same level, and pass it to the other side conveyor, then put it down and continue convey, this group can slove the problem of space limitation.
Â�¢application filed:
furniture, door, wardrobe, cupboard, floor, decoration, building insulation, etc.
Â�¢application board:
solid wood board, ply, mdf, mfc, pb, glass, calcium silicate board, marble, etc.
Technical parameters
optional working width 600mm - 1300mm
min working length 300mm
working speed 0-25mmin
full power 3kw 380v
conveyor î¦50mm
estimated weight 1210kg1360kg1520kg
overall dimensions 3800*3470*850mm
4000*3870*850mm
4870*4500*850mm
main parts
electric motor unis
frequency converter shihlin
conveyor rubber rollers and polyurethane
electrical appliance chint
control system board turning control system, lcd screen
