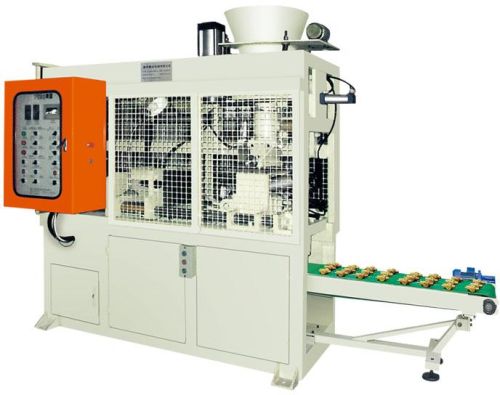

Automatic Core Shooting Machine

"JD-361-Z Automatic Core Shooting Machinery
全自动射芯机"
※ 功能及技术参数 Main Specifications and Technical Parameters
装置：PLC控制 Device:PLC Control
运转：气压转动 Operation:Driven by air pressure
操作功能：手动、半自动、全自动（附输送带） Operating functions:Manual,senmi-auto,full-auto(with conveyer belt)
可选用两种砂态：覆膜树脂砂（干态）、呋喃树脂砂（湿态） Two optional sand state:Coated resin sand(dry).furan resin-sand(wet)
电加热：自动恒温（动模、静模可独立控温） Electric heating:Automatic thermostat(dynamic mode,static mode can be an independent temperature control)
合模行程：300mm Clamping stroke:300mm
顶锁行程：30mm (动模机械式、静模气动式） Top lock stroke:30mm(dynamic mold is in mechanical type,static mould is in penumatic type)
射砂孔最大中心距：320mm Maximum center distance of abrasive perforating:320mm
气压工作压力：0.5-0.7mpa Working pressure:0.5-0.7mpa
全程运作理论时间：30-60 Theoretic time for full-round operation:30-60 seconds
理论砂芯最大质量：400g Theoretic maximum quality of sand core
机器规格（长*宽*高）：2700*1280*2000mm "Dimensions(L*W*H):2700mm*1280mm*2000mm
"
