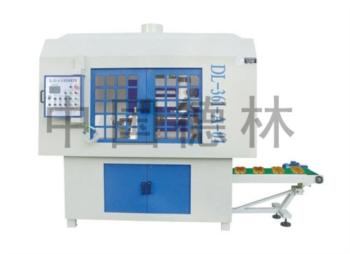

Contact SupplierWe are offering automatic core shooting machine (with nylon conveying band) of type dl-361-a-01
main specifications and technical parameters
1. Greatest weight of sand cores 6 kg
2. The biggest size of core boxes (l*w*h) (400*280*200) mm
3. Heating power 9.6 kw
4. Itinerary of plunger under pressure �30 mm
5. Itinerary of opening mould �300 mm
6. The longest itinerary of core-pull guide bar 125 mm
7. Nylon conveying band (l*w*h) (2200*400*100) mm
8. Total power of the machine 10 kw
9. Increased angle of nylon conveying band 2â°- 4â°
10. Transmission speed 72 mm /s
11. Size of appearance of machine (l*w*h) (3500*1480*2350) mm
12. Net weight of the whole machine 1543 kg.
