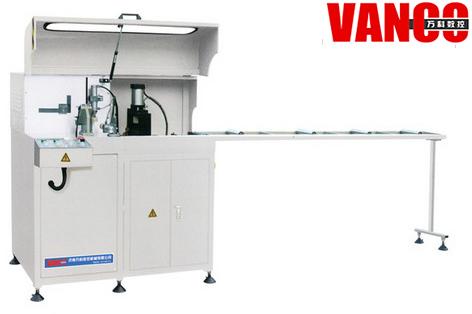

Automatic Corner Connector Cutting Saw

We offer automatic corner connector cutting saw for aluminum window and door ljja-500
features:
1. Easy operation, dependable performance, advanced technology, easy maintenance.
2. Used to cut aluminum profile corner connector.
3. Japan omron control system which ensures high processing accuracy.
4. Cemented carbide saw blade ensures high cutting speed and productivity and working accuracy.
5. Linear motion bearing ensures lower resistance running and high processing accuracy.
6. Automatic feeding system, which is reliability and high efficiency.
7. Air-operated system, easy operation, safe and reliable, high productivity.
8. Automatic feeding and cutting after loading casement profile.
9. Magnetic ruler system ensures high precision sizing of corner connector width.
10. Control system can be showed at both computer interface and data display instrument.
11. Control system can calculate and save the cutting data automatically which can protect the data when outage.
Technical parameter:
power supply: 380v50hz
motor power: 3kw
motor revolving speed: 2880rmin
operation air pressure: 0.6~0.8mpa
air consumption: 200lmin
auto-feeding length: 5~580mm
cutting speed: 0~3mmin
saw blade standard: φ500mm*φ30mm*4.4mm*120t
cutting widthheight: 140mm140 mm (max)
dimension: 5670mm (l)*1770mm (w)*1840mm (h)
profile cutting flatness: ≤0.10mm
profile cutting perpendicularity: ≤0.1mm
profile cutting roughness: ra12.5μm.
