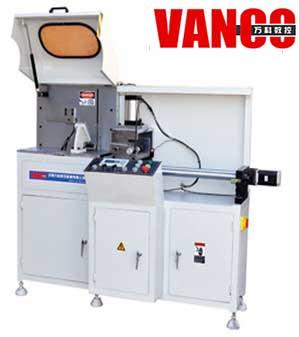

Automatic Corner Connector Cutting Saw

We offer cnc automatic corner connector cutting saw for aluminum window and door ljja-cnc-500
features:
1. Easy operation, dependable performance, advanced technology, easy maintenance.
2. Used to cut aluminum profile corner connector.
3. Schneider servo control system connects with ball screw, which ensures high processing accuracy.
4. Cemented carbide saw blade ensures high cutting speed and productivity and working accuracy.
5. Linear motion bearing ensures lower resistance running and high processing accuracy.
6. Air-operated system, easy operation, safe and reliable, high productivity.
7. Automatic feeding and cutting after loading casement profile.
Technical parameter:
power supply: 380v50hz
motor power: 3kw
motor revolving speed: 2800rmin
operation air pressure: 0.6~0.8mpa
air consumption: 200lmin
auto-feeding length: 5~700mm
cutting speed: 0~3mmin
saw blade standard: φ500mm*φ30mm*4.4mm*120t
cutting widthheight: 140mm140 mm (max)
dimension: 5670mm (l)*1770mm (w)*1840mm (h)
profile cutting flatness: ≤0.10mm
profile cutting perpendicularity: ≤0.1mm
profile cutting roughness: ra12.5μm
