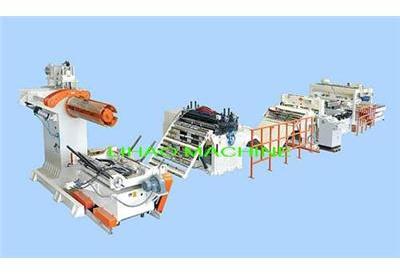

Automatic Cut To Length Machine

I. Function.

Cut to length line, is an automatic transversal cutting production line, for cutting steel, aluminum, brass, etc, sheet stirp coil.
Cut to length line, can uncoil metal strip coil, then straighten metal strip,
then feed metal strip forth to shearing machine, then shearing machine cut metal strip transversely, in order get required length metal sheet plates, as per required length.

Model Coil Maximum Width (mm) Strip
Thickness
(mm) Sheet Plate Length Coil
Weight (ton) Floor Area (m)
LH-CTL-650 100-620 0.3-2mm ＞300 1-5 2×15
LH-CTL-850 200-800 0.3-2mm ＞500 1-5 2.5×15
LH-CTL-1300 300-1250 0.3-2mm ＞550 1-15 4×18
LH-CTL-1500 600-1500 0.3-2mm ＞500 1-15 5×20
LH-CTL-1600 600-1600 0.3-2mm ＞500 1-20 7×20
LH-CTL-1800 800-1750 0.3-2mm ＞500 1-25 8×22

1. Coil car
2. Uncoiler
3. Straightener
4. Supporting device
5. NC servo roll feeder
6. Shearing machine
7. Conveyor feeder
8. Stacking machine
9. Loader
10. Lifter
11. Electrical control system
12. Hydraulic system
13. Pneumatic system
14. Etc
