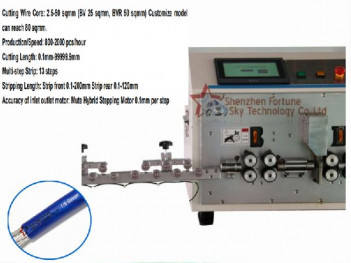

Automatic Cut-to-length Thick Wire Stripping Machine (Max 50 SQMM)

Automatic cut-to-length thick wire stripping machine
product feature:
the machine adopts hybrid driven microcomputer lcd screen control system, in the processing
range can be arbitrarily set the length of the cutting line, stripping length, has quantitative and
timing start function. Specialized for thick wire or cable , especially for bv, bvr cable wire
processing used in the automotive, power distribution box.
4 wheels: machine working video
6 wheels: machine working video
8 wheels: machine working video
technical parameters
mode
bj-900
bj-960
bj-980
function
wire cut, both-ends strip, intermediate strip
wire cut, both-ends strip
cutting wire core
0.1-25 mm2
(bv 16mm2, bvr 35mm2)
0.1-50 mm2
(bv 16mm2, bvr 35mm2)
0.1-50 mm2
(bv 25mm2, bvr 50mm2)
production capacity
1000-4000 wireshour(decided by wire type)
cutting length
0.1mm-99999.9mm
intermediate strip no.
13 strips
stripping length
strip front 0.1-50mm strip rear 0.1-30mm
strip front 0.1-250mm strip rear 0.1-120mm
strip front 0.1-250mm strip rear 0.1-120mm
accuracy of inlet outlet motor
mute hybrid stepping motor 0.1mm per step
remark function
auto-outlet, auto-inlet, timing start
driving mode
4 wheels
6 wheels
8 wheels
dimension
420x297x345mm
530x420x370mm
570x420x400mm
net weight
35kg
35kg
45kg
blade material
import tungsten steelhighspeed steel
