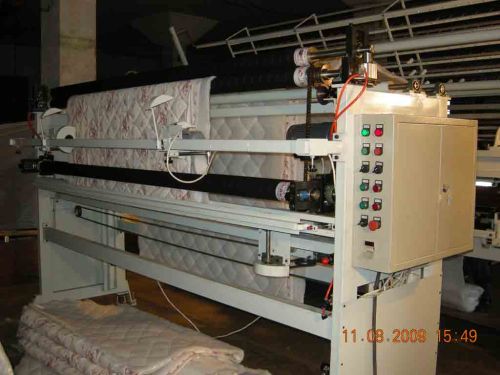

Automatic Cutting Machine, Brand Name : Maochang

We are offering automatic cutting machine.
auto panel cutting machine is used for working with quilting machine. After quilting the products, this machine could cut them into pieces of the desired length and width. This machine can also cut the quilted products into strips as mattresses, and roll the strips with its rolling unit. You could set the cutting length and width by touching the touch-control screen. This machine is equipped with plc controlled program, 3 disk blades without grinding unit (the blades can trim two sides and cross cut), easy to operate and easy to maintain.
technical features:
to put up the upper pressure cloth beam by air-power, which make change cloth more safety and save labour
the cutting length is manual / automatic regulation, the cutting wideth is manual regulation .
the thickness of sponge and cloth it cut can be 10mm.
every vertical cutter has safety cover, make it safe and durable.
all the parts are assemble precisely.
specifications:
dimension:l×w×h 3620mm×1370mm×2010mm
the largest cutting wideth: 2800mm
automatic largest cutting wideth:99990mm
the largest cutting thickness:50mm
working frequency:50hz
power supply:380v
phase number: 3 phases
technical data:
disc blade
3 pieces, 2 sides, one cross
working width
100 - 2500 mm
cutting thickness
5 - 50 mm
cutting speed
7000 mm/minute
power required
3 kw
air pressure required
4 kg
floor space
3700 x 2530 x 2360 mm
weight
110 kg
after-service:
1.the machine is guaranteed for one year.
2.we can arrange engineer to debug and install for customers
ce certificate:
