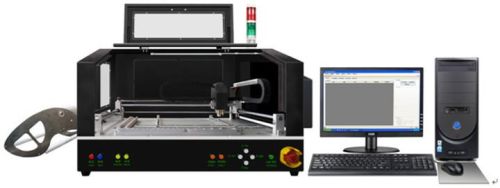

Automatic Desktop Smt Pick and Place Machine

We are offering automatic desktop smt pick and place machine. Smt6000a is dedicated to research and develop electronic products, it is a small desktop type machine which suits for small and medium-sized enterprise assembly line is developed by our company. This machine has superior function 1.small batch production. 2. Experiment, research and development. 3. Sample preparation and trial-produce. 4. Processing and mounting led smt, etc.
Specification
desktop automatic budget smt machine
model smt6000a
applicable pcb 20mm*20mm~470mm*376mm
placement head quantity 2
strip roller quantity 26（+ 2 simple tray）
mounting capability 5000pcsh
mounting accuracy ±0.03mm
applicable components 0402~5050，sop.qfn
（tape width: 8mm,12mm,16mm）
external dimension l 750mm*w 633mm* h 285mm
vacuum pump -92kpa (included, mute pump)
vacuum pump quantity 2(included, mute pump)
power supply 220v , 50hz
average working power 100w
product features
1. on the basis of programming and control system of windowsxp, it is supported to import the coordinate file and online programming.
2. placement heads can work in the same time and the mounting range is big. It supports big and thick component. 4 placement heads can be choosed
3. laser alignment, online programming
4. vacuum detection, intelligent discriminant good or bad adsorption
5. detection of material lack, automatic alarm
6. automatic feeder, ic trough, ic shelf
7. ce certification, with emergency switch and automatic power-off protection device when emergency happens
