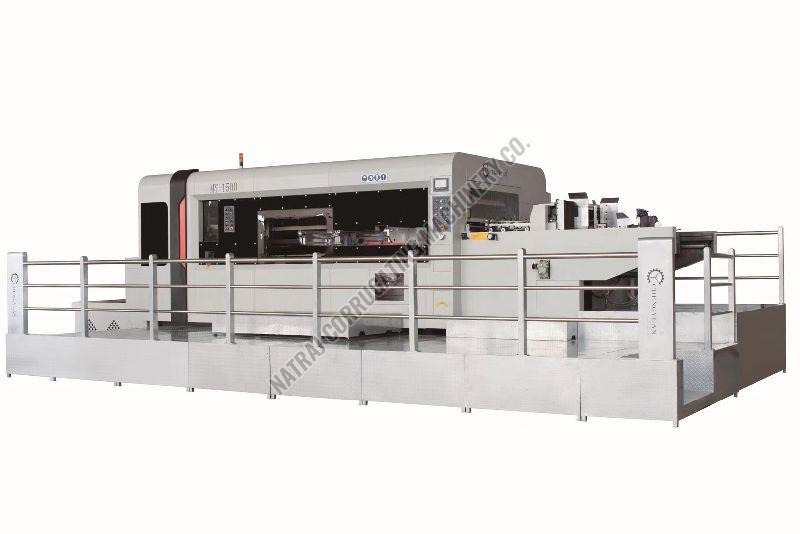

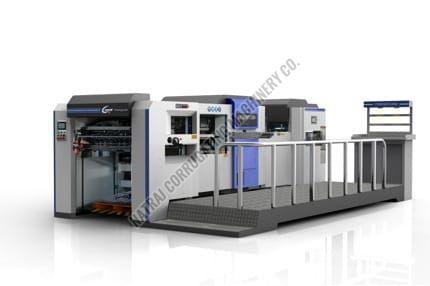

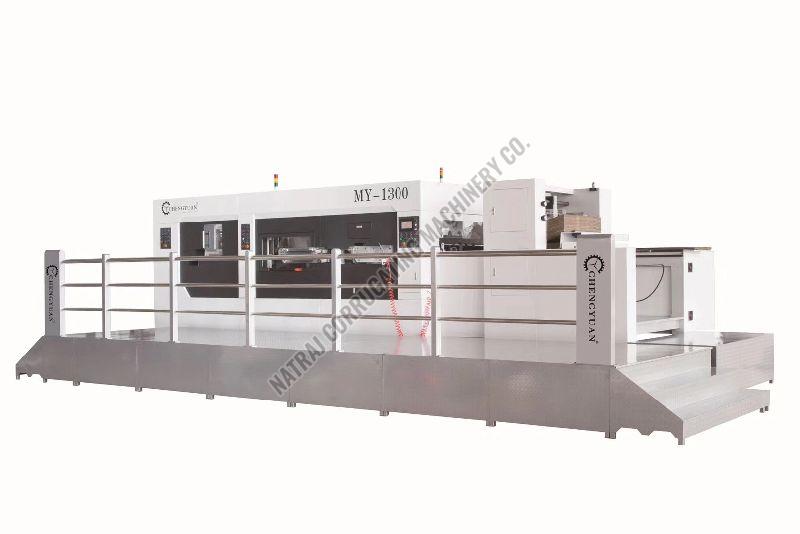

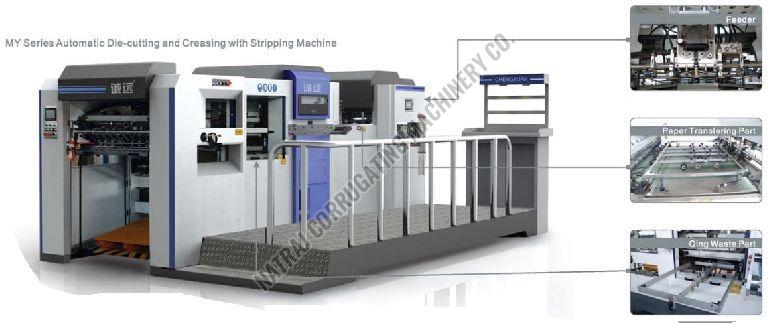

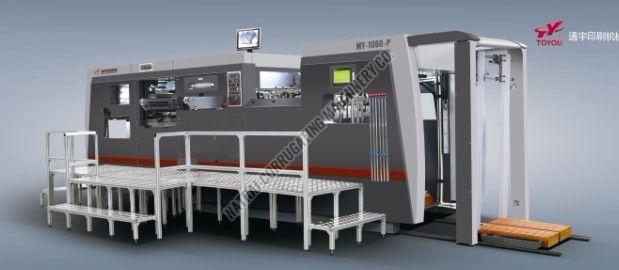

Automatic Die Cutting and Creasing with Stripping Machine

Listing ID #5353416

this machine is a special equipment applying to die-cutting of advanced colored boxes made of paper. This machine combines several advantages over many other die cutters both at home and abroads. Gripper bars with high intensity are applicable to all kind of cardboard, paper board and corrugated paper. Frontal, back and side registeration mechanism ensure great precision of die-cutting. Other parts are adopted such as intermittent mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the displayof trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has lot of sensors and safe -ensuring devices to guarantee the safety of operatorand environment. Pressure is to be adjusted. It can also realize die cutting without clipper margin. All these performances make the machine prominent in high quality and low price among similar products.

model                                  my-1050                      my-1080

max. Die cutting speed :    6500 sheets/h                6500 sheets/h

max. Paper size :               1060x760mm                 1080x780mm

min. Paper size :                400x370mm                   400x370mm

paper type :                      120-2000g/m2                120-2000g/m2

max. Die cutting pressure : 300n/cm2                       300n/cm2

total power :                      20 kw                            18 kw

total weight :                    16 t                                17 t

dimentsions :                     5810x2310x2250mm        5810x2310x2250mm
