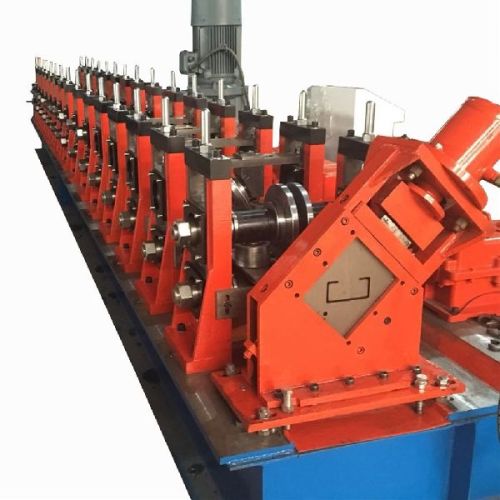

Automatic Din Rail Channel Roll Forming Machine

This Automatic Din Rail Channel Roll Forming Machine is the main working part of the whole unit. After continuous rolling deformation, the strip becomes the profile which meets the requirements of the drawings. The Din Rail channel Roll Forming Machine is composed of the fuselage, guiding device, straightening device and transmission system. Light Rail Metro Rail Production Line During the cold bending process, the sheet metal gradually forms into the final shape, and when the material passes through the mill, Light Rail Metro Rail Machine is formed by a rotating roller. The objective of roll design is to shape the desired product within a given tolerance with a minimum number of forming steps, the minimum number of passes. The advantages of Cold Roll Forming Machine are: it can produce various ultra-thin, ultra-wide and complex profiles which can not be produced by rolling; Track Forming Machine can save metal materials and has good mechanical properties. Commonly used processing methods are roll bending, bending, bending and bending. 1. Profile Drawing and Products for Reference 2. Working Flow of Din Rail Channel Roll Forming Machines Decoiler---- feeding with guide--- Punching---- Roll forming---- Cutting---- Products collecting 3. Technical data COMPONENT FOR advertising borad forming machine Name Quantity Units Decoiler 1 Set Main Machine Feeding device 1 Set Roll forming system 1 Set Cut Equipment  1 Set Hydraulic system
