Automatic Doors-mw250a

₹ 30,136.50 / 444 444 Set

MOQ1 Set(s)
all function builtinautomatic sliding door
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering automatic doors-mw250b sliding method: single door leaf / double door leaf weight of door: 180kgx 1 / 150kg x 2 installation : surface installation driving rail : 1400 3000 mm /....

Company Information

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 1996

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering automatic doors-mw250b
sliding method: single door leaf / double door leaf
weight of door: 180kgx 1 / 150kg x 2
installation : surface installation
driving rail : 1400 3000 mm / 2800 5000 mm
width of door : 700 1500 mm / 700mm 1250x 2
consumption power : 70 w
electronic pressure: ac200 240v 50hz
temperature : -20 50
motor : dc24v60w brushless
opening speed : 200 500mm /sec adjustable
closing speed : 200 500mm /sec adjustable
hold up time : 1 20sec adjustable
hand operation force :17.6n(1.8kgf) 27.4n(2.8kgf)
imput current 220v.stand by : 0.045a .0.09a

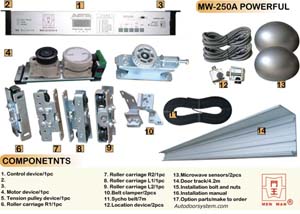

imput current 220v.working :0.93a .1.29a standard 1 set (250) door kit include: 1pc control device/1pc motor device /1pc tension pulley device /4pcs hanger device/
2pcs swing-stopper/2pcs belt fixing device/7.5m sycho belt/2pcs stopper device/2pcs microwave sensor/4.2m door track/installation manual
option parts: end-cap for door track/cover for door track.
