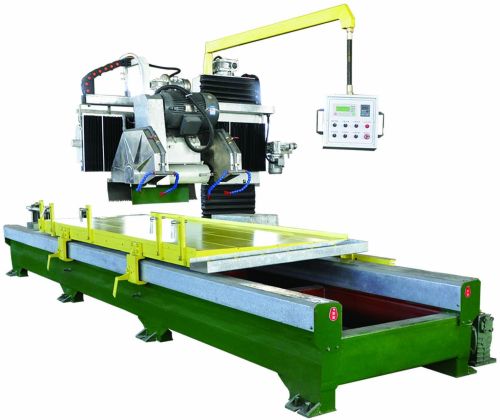

Automatic Double Blade Profile Modeling Lineation Cutting Machine

We are offering automatic double blade profile modeling lineation cutting machine.
1. it adopts cnc system or plc system and converter technique, fully auto controlling and computer automatic tracking.
2. high efficiency:double blades cut at the same time to improve the efficiency.
3. easy for cleaning: the table is hollow so that it is easy for waste discharging and then extends the lift of machine.
4. it is good in connection of the processed curled line, stable in performance and high in work effieciency.
5. good care: the column and beams both use the organ shield
diamond saw blade (φ400mm)
φ600mm made to order
general power 13.95kw
knife rest transverse journey 1200mm
max workpiece( l × w ×h) 2500mm × 1200mm ×600mm
workbench max. Journey 2700mm
weight 4.5t
water consumption 3 m3h
dimensions 5000mm × 2200mm ×2400mm
