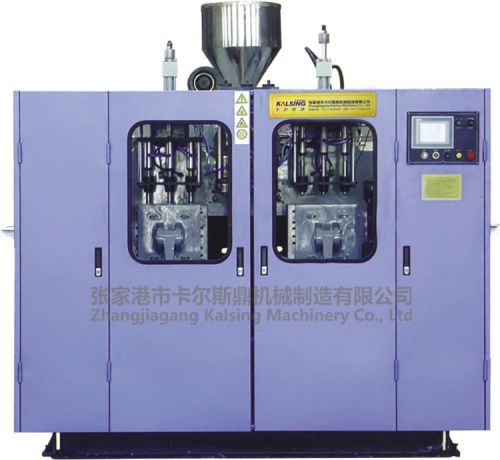

Automatic Double Station Blow Moulding Machine - (kal70-5l)

MOQ1 Set(s)
Supply TypeManufacturer
Preferred Buyer Location All over the world

Detailed Product Description Technicial Parameters Material: PE.PP.PVC.PA Max container capacity: 5L Number of die: 1.2.3.4 Output (Dry Cycle): 700*2Pc/hr Machine dimension(L*W*H):....

View More Details

Send Enquiry

Company Information

Zhangjiagang City Kalsing Machinery Co.,Ltd

Jiangsu Province

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Detailed Product Description
Technicial Parameters
Material: PE.PP.PVC.PA
Max container capacity: 5L
Number of die: 1.2.3.4
Output (Dry Cycle): 700*2Pc/hr
Machine dimension(L*W*H): 3.2*2.2*2.5M
Total weight: 6.8ton
Clamping force: 65KN
Platen opening stroke: 164-524mm
Platen size: 320*380mm
Max mould size(W*H): 380*390mm
Mould thickness: 153-320mm
Max drive: 33KW
Total power: 41KW
Fan power for screw: 0.14*3KW
Air pressure: 0.6Mpa
Average energy consumption: 23KW
Screw diameter: 70mm
Number of heating zone: 3zone
Extruder heating power: 7.2KW
Extruder driving power: 22KW
Number of heating zone: 3zone
Power of die heating: 2.5KW
Max die pin diameter: 140mm
Center distance of double die: 150/160mm
Center distance of tri-die: 110mm
Center distance of tetra-die: 80mm .
