Automatic EPS Shape Molding Machine

We are offering automatic eps shape molding machine. Item unit psz120 psz140a psz140b psz170
standard mould size mm 12001000 14001200 12001400 17001400
finished product size mm 1000850 12001050 10001250 15001250
finished product height mm 300 400 400 400
horizontal distance with coupling flange mm _________ 200-1350 200-1350 200-1350
without coupling flange mm 150-1150 350-1500 350-1500 350-1500
guide rod outer diameter mm 65 80 80 80
oil cylinder diameter �� stroke mm 1101000 1401150 1401150 1251150
oil cylinder speed mms 125 140 140 110
steam inlet diameter mm dn50 dn65 dn25 dn80
steam inlet diameter of mould mm dn25 dn25 dn25 dn25
steam consumption kgcycle 5 6 6 7
steam pressure mpa 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8
cooling water inlet diameter inch 2 2.5 2.5 3
cooling water consumption kgcycle 20 25 25 35
compressed air inlet diameter inch 1 1.5 1.5 2
compressed air consumption m3cycle 1 1.5 1.5 2
vacuum consumption lcycle 4 6 6 8
vacuum pump max flow m3h 165 230 230 280
oil pump max flow mlr 40 72 72 72
high pressure + low pressure mpa 16+6 16+6 30 16+6
silo feeding guns pcs 16 30 30 30
volume l 300 360 5.5 360
motor power hydraulic station kw 4 7.5 7.5 7.5
vacuum pump kw 4 5.5 5.5 7.5
silo blower kw 0.5 2.2 15.2 2.2
installation power kw 8.5 15.2 15.2 17.2
overall dimension(l*w*h) m 4.52.03.6 5.12.24.2 5.124.4 5.12.54.4
forming cycle s 60-100 80-130 80-130 90-135
machine weight t 3 4 4 4.5

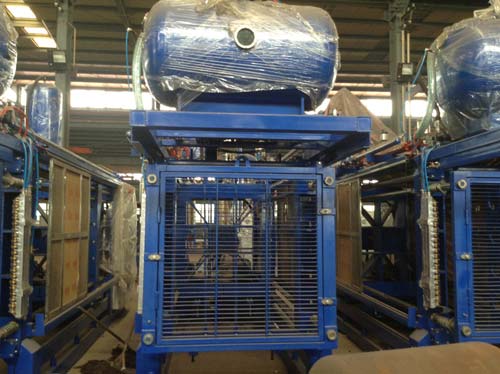

photo for reference
