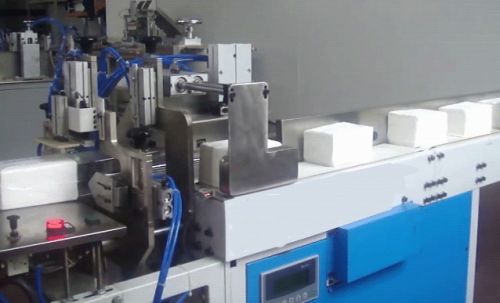

Automatic Facial Tissue Seal Pe Packing Machine

i. Introduction
model name: dc-ft-spm4
this machine can feed the facial tissues in the plastic bags with one side open and seal the bags automaticly
ii. Function and features
1. To fill and seal the packet at one time will enhance the efficiency and reduce the production costs.
2. Operating by machine instead of by man, making the finished products standard.
3. Operating easily, demanding little of operators.
4. The machine hems so automatically and rapidly that the finished products look tidy and clean, standard on the surface.
5. Apply famous brand name plc computer programme control system, controlling and localizing exactly, setting and changing operation parameters handily.(to be ordered)
6. This machine is deviced transfer belt unit. Andmajor control assembly is high-quality imported parts; the rest is national high-quality and standard parts, with stable functioning.
iii. Method of use
lay the article onto the feeding part, with the empty packet hitched to the filling mouth, fill the packet automatically and at one time fold the packet line and finish sealing and cutting.
iv. Scope of application:
packaging of regular soft and pumped products square hankies and napkin paper with out-packaging.
production speed: 8-15bags/min
width of flat seal thread: 3mm
diameter of round thread: 0.4mm
materials: nickel chrome thread
power supply: 220v 50hz
pneumatic: 0.3-0.5mpa（provided by customer)
dimension (l×w×h) (mm): 1400×550×950mm
weight: 65kg
v. Export details
1. Delivery time :35 days（need time to promise the processing precision ,assembling precision ,of course if there is any special situation which needs shorter time ,it can be discussed）
2. Load port: xiamen port in fujian province
3. Packing: in standard export wooden cases
4. Contained in a 20 feet container (it depends on the quantity of the machines)
5. Machine installation and operation training: seller will assign professional technicians and engineers to buyer’s plant to install the machine and train the workers .the round air ticket, lodge and board fee, and salary will be on buyer’s side.
6. Warranty: one year(except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
