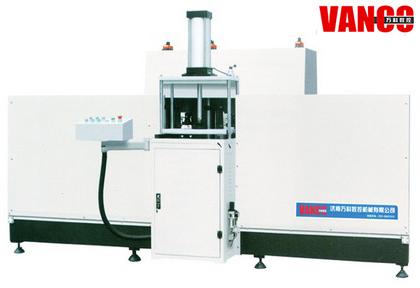

Automatic Feeding Type Milling Tenoning Machine

we are offering automatic feeding type milling tenoning machine for aluminum profile lxsj6a-250
features:
1. used for milling profile section which is used to be a window beam to make sure that the window beam is suitable for the window frame.
2. it can mill several profiles in one time with high efficiency.
3. universal milling blades can be adjusted in updown, leftright to fit for different processing requirement and ensure the efficient working.
4. it can meet more processing requirement of many kinds of reinforce window beam profile.
5. the cutter is no need to be customized due to the adjustment of it, which is shortening production arrangements, time and reduce cost.
6. large tools with high and stable milling speed guarantee the working quality.
7. motor phase sequence protector is installed in electrical system, which enhanced system security.
8. air and hydraulic damping device ensures stable and reliable working.
technical parameters:
power supply: 380v50hz
total power: 13.2kw (6 sets cutters)
motor revolving speed: 2800rmin
operation air pressure: 0.5~0.8mpa
milling cutter main spindle diameter: φ32mm
milling cutter diameter: φ250mm
saw blade diameter: φ355mm
motor stroke adjustment range: 0~85 mm
max tenoning size: 40 mm
dimension: 3240mm×970mm×1670 mm (l*w*h)
weight: 650kg.
