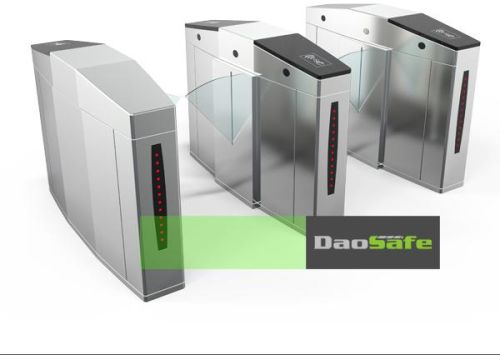

Automatic Flap Barrier Turnstile Gate

We are offering automatic flap barrier turnstile gate
flap barrier gate main functions:
(1) flap barrier gate easy to install, use and maintain.
(2) when power off, the barrier arms will keep open (for safety).
(3) infrared sensor function.
(4) flap barrier gate can be integrated with magnetic card, barcode scanner,
counter, swallow machine, token accepter, and fingerprint machine and so
on by
standard electrical interface.
Automatic flap barrier gate
flap barrier gate specifications sheet:
item: description:
material: 304 ss, arm- plexiglas
thickness of ply: 1.2mm (standard)
dimensions: (l)1400* (w)300 *(h)990 (mm)
finishing: brushed (standard) fingerprint processing
pass width: 600mm
weight: 70kg80kg
operation direction: single direction bi-direction
power voltage: ac220v +- 10v 50hz
ac110v +- 10v 60hz
work environment: indoor outdoor(with shed)
pass rate: 35 personmin
driving motor: 40w24v
operating temp.: -15℃ ~ 60℃
operating humidity: 0 ~ 95% without concretion
arm openclose time 1s
input interface: 12v level signal or pulse wide>100ms
communication interface: rs485 or rs232, tcpip (distance: ≤10m)
infrared sensor 3 pairs
automatic flap barrier gate
infrared sensor function:
(1) anti-pinch function:
when people stand in the middle lane, flap arm will not close.
(2) illegal intrusion alarm function:
when people illegal to pass, flap will alarm automatically
(3) reverse intrusion closing function:
when you swiped card if another people pass from the reverse side, flap
arm will
automatically close.
(4)anti-trailing function:
if someone wants to trail with you without swiped the card, flap arm will be
locked
automatically.
Contact info:
company name: daosafe technology co., ltd.
