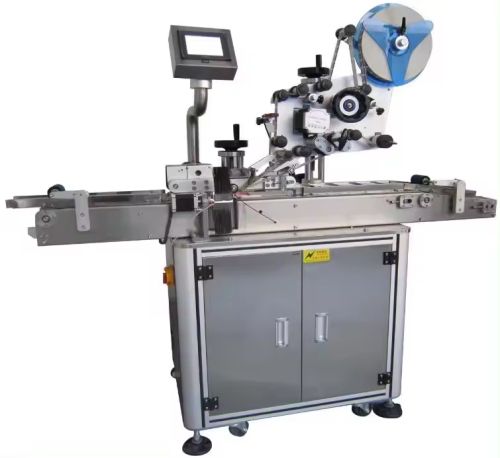

Automatic Flat Bottle Labeling Machine

Applicable Products:

It is suitable for corner sealing and labeling of various packaging boxes, widely used in medicine, daily chemical, logistics and other industries; using flexible topping device to ensure the stability of the box body when labeling, greatly improving the labeling accuracy; it can complete the upper surface sealing and the lower surface Sealing, two types of diagonal sealing labeling, four sealing labeling forms; thermal transfer printer or inkjet printer can be flexibly selected; the overall material of the equipment is standard S304 stainless steel and imported aluminum alloy material, double-layer anodized treatment , Never rust and deform.semi auto corner sealing labeling machine,corner sealing labeling machine,carton corner labeling machine,two corner labeling machine,automatic corner labeler machine,corner label machine,corner label machine for box.

technical parameter:

Output (pieces/minute) 100-200 pieces/minute (related to material and label size)

Operating direction: left in, right out or right in, left out

Labeling accuracy ±1.0 mm

Label type Self-adhesive label, transparent or opaque

Inner diameter of label φ76 mm

Roll label outer diameter φ350 mm(max)

Label size length 10-70mm, height 10-70mm

Labeling object size: width 40-90mm, height ≤100mm

Working pressure 0.6Mpa

Power supply and power 220VAC±10% 50Hz, 1.2Kw

Applicable environment temperature 5-40℃, humidity 15-85% (no condensation)

Weight (kg) 400kg

Machine size 2200 (L) 1300 (W) 1500 (H) mm

Remarks Non-standard customization is acceptable
