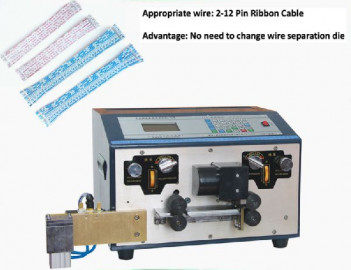

Automatic Flat Ribbon Cable Cutting Stripping Splitting Machine

Product feature:
the machine using the hybrid drive microcomputer lcd display control system, cutting, stripping and both-ends splitting in red white flat ribbon cable, blue white flat ribbon cable, gray flat ribbon cable, double flat ribbon cable can be finalized in one time,computer control both-ends splitting length, does not require the replacement of mold, operation is simple and easy to understand.
machine working video
technical parameters
mode
bj-900+t
function
flat ribbon cable cutting, both-ends stripping and splitting, intermediate stripping
applicable wire range
2 pins-12pins
processing speed
2000-4000 pieces per hour (decide by wire material)
cutting length
0.1mm-99999.9mm
intermediate stripping nos.
13 strips
stripping length
stripping wire head: 0.1-25mm stripping wire tail:0.1-20mm
accuracy of entry & outlet wire motor
mute hybrid stepping motor 0.1mm per step
remark function
auto-entry wire, auto-outlet wire, timing start
driving mode
six wheels driven
dimension
510x340x340mm
net weight
40kg
cutter material
import tungsten steelhighspeed steel
