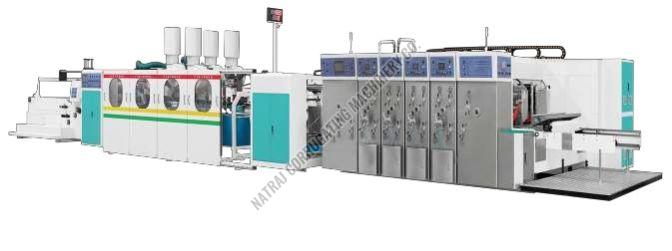

Automatic Flexo Printer Slotter Die Cutting with Inline Folder Gluer (Case Maker)

This advanced production system represents a complete automation solution in the packaging industry, integrating flexographic printing with folder gluer technology for seamless in-line control and unmatched efficiency.

1. Touchscreen Control with PLC Integration

   • Each moveable unit is equipped with an individual touchscreen interface

   • Full digital order management and function operation

   • Compatible with centralized computer systems for integrated line control

2. Pneumatic Interlock Safety System

   • Integrated drive and safety protection with pneumatic interlocking between each section

   • Prevents unsafe operations and enhances overall line protection

3. High-Precision Gear System

   • All transmission gears are carburized, quenched, and ground for long life and high accuracy

   • Gears are continuously lubricated via a recycle spray lubrication system

4. Premium Core Components

   • Equipped with top international brand components for motors, PLCs, sensors, and pneumatics

   • Ensures stability, performance, and long-term reliability

5. Fully Integrated In-Line Control

   • Seamless communication between the Flexo Printer and Folder Gluer

   • Enables real-time order change, batch control, and quick job shifts

   • Major breakthrough for fully automated corrugated box production lines

• Skip Feeding Function:
  Allows alternate feeding for large-size or delicate sheets to prevent overlap and ensure accuracy

• Sheet Cleaning System:

  • Equipped with upper suction motor and rotating brush system

  • Removes dust and debris from the board before printing for improved quality

• Motorized Unit Control:

  • Motor-driven unit on/off movement with safety lock

  • Audible alarm activates while units are in motion to ensure operator safety
