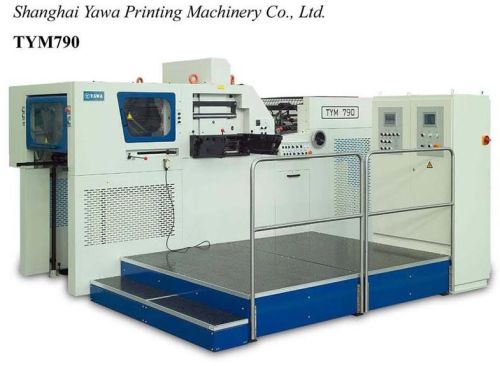

Efficient and easy to operate, our Automatic Foil Stamping Machine (TYM790) delivers accurate, adjustable impression for foil stamping, embossing and die cutting. The company is a proficient Manufacturer and Supplier of Automatic Foil Stamping Machine (TYM790) from China. Automatic Foil Stamping Machine we make available features accurate and programmable control system with servo motor and encoder. We hold the expertise of delivering bulk orders of the Machines. Â
Features
Max. Sheet size(mm) | 790×560 |
|---|---|
Min. Sheet size(mm) | 310×210 |
Max. Die cutting size(mm) | 750×520 |
Max. Stamping size(mm) | 760×525 |
Height of cutting rules(mm) | 23.8 |
Max. pressure(N) | 120×104 |
Stock range | Min. Sheet ：90g/m2 Cardboard ：157~2000g/m2 Eã€B flute |
Min. gripper margin(mm) | 6 |
Max. machine speed(s/h) | 5500 |
Max. Stamping speed(s/h) | 5000 |
The thickness of stamping plate(mm) | 5(Optional 4+1) |
Longitudinal feeding shafts | 3 |
Transversal feeding shafts | 2 |
Feeding pile height(mm) | 1200 |
Delivery pile height(mm) | 950 |
Electric heating system | 8 zones |
Min. foil width(mm) | 40 |
Foil reel core(mm) | 25(1") 76(3") |
Rated capacity (kw) | 26 |
Air supply | 0.8～1.0MPa，≥0.6m3/min |
Overall dimension(mm) | 3855×3560×2210 |
Weight of machine(kg) | 8000 |
