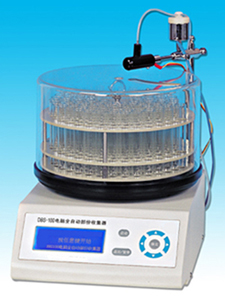

Automatic Fraction Collector, Brand Name : Biocotek

We offer Automatic Fraction Collector can set time/drops/peak counting automatically when using it in chromatographic analysis for research、laboratory、medical treatment and institute of higher learning,thus it can be instead of hand operation. Dbs series can realize collection automatically in order to raise efficiency.
Dbs series can use with hl series constant flow pump,th series grads mixer which our company manufactured. Also you can connect with hd series uv detector when using the function of peak setting .
dbs series automatic fraction collector is a fire-new updated production which use new microcomputer chip. It has dependable quality, stable property, and easy to operate .also can be used widely. Dbs series is a prefect instrument for research、laboratory、medical treatment and institute of higher learning.
technical:
1. Collected test tubes: 100 tubes (dbs-160 has 160 tubes)
2. Max capacity: 12ml per tube (dbs-160:5ml per tube)
3. Range of timed collections: 1 second to 9999 minutes
4. Range of setting peak collections: 1-100mv
5. Range of counting drops: 1 drop to 9999 drops
6. Function of power-down data storage: data will be kept for ten years
7. Options of tubes no: dbs-100 first tube 1-99 last tube 2-100
dbs-160 first tube 1-159 last tube 2-160
8. Warning time of wanting liquid (when using the mode of counting drops collections): about 8
minutes
9. Consecutive working time: one week
10. Dbs series can realize full-automatic collection when external connected with the constant flow
pump/recorder/uv detector.
11. Power voltage: ac 220±10% 50hz
accessories:
1. 1 peace power supply wire 6. 1 board of weeping alarm
2. 2 fuse-wires (0.5a) 7. 1 booklet of indication
3. 1 set of relief valve 8. 1 certificate of quality
4. 1 montant 9. 1 guarantee and maintenance card
5. 1 head of drop record 10. 1 packing list.
