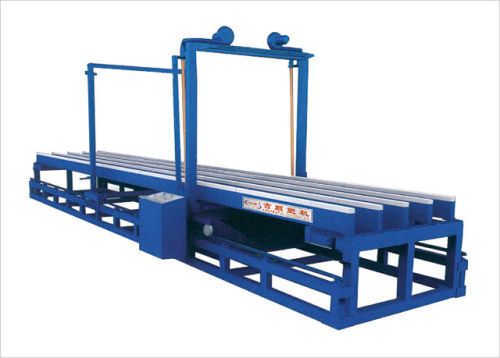

Automatic Frequency EPS Cutting Machine

We offer automatic frequency eps cutting machine.
Main features:
--- the main frame of the machine is welded from square tube, with firm structure, high strength, no deformation and can be freely and easily dismantled and assembled;
--- cut by hot wire with smooth and level cut mark;
--- motor speed controlled by frequency converter can be swifted between 0-4mmin, with features of convenient adjusting,stable operation,low noise and accurate cutting size;
--- electrical control box and transmission device are installed on cutting shelf to move along with the machine, which is convenient operation;
--- this eps block cutting machine adopts horizontal, vertical and edge surface cutting wires to realize block 3d cutting; equipped with its own moving device, the edge surface cutting wire could be run together with the horizontal and vertical cutting wires at the same time,and using clutch to make the moving device quick return;
--- equipped with 10kva transformer of multiple tapping,large capacity and wide voltage adjusting range,the eps block cutting machine can run 30 hot wires at the same time;
--- automatic control system on the edge surface cutting is optional.
Technical data:
item unit model spq600 spq800
maximum cutting size mm 6000*1250*1250 8000*1250*1250
transformer capacity kva 10 10
installed power kw 17.8 17.8
outline dimension mm 8800*1900*2400 10800*1900*2480
total weight kg 2800 3200
