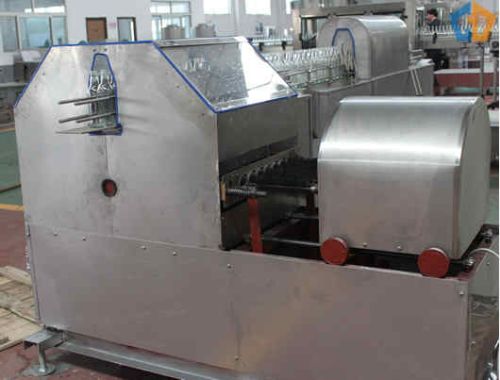

Automatic Glass Bottle-washing Machine

1. Principal features
The machine contains the inner layer washing machine, the outside remove labeling machine, and the soaking machine etc.
And we could dispose soaking groove and electric control system, with the characters of high efficiency of washing bottle, low bottle –broken, rate, saving water and electricity.
2. Principal parameter
Bottle specification Bottle outside diameter 56-64mm
Bottle height 140-220mm
Production capability 3000-4000 b/h
inside washing machine Main motor power 1.1kw
Inside washing motor 0.55kw
Inside washing motor 505r/min
Pressure of water supplying 0.3-0.4Mpa
Bottle feeding speed 7.24m/min
Driver plate speed 7.28r/min
Outer size 1750×1320×1320mm
Weight 1100kg
Outside remove labeling machine Orbit motor 0.75kw
Orbit speed 11.13r/min
Outside washing motor 0.75kw
Water pump motor 0.37kw
Water consumption 2.8m3/h
Outer size 2900×800×1350mm
Weight 600kg
Steeper Liquid temperature 45-65oC
Solution concentration 1.4%
Outer size 2400×2650×2400mm
Weight 450kg
