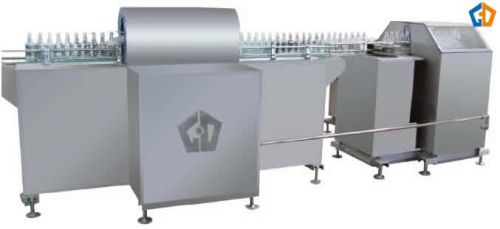

Automatic Glass Bottle Washing Machine, Brand Name : GD

we are offering automatic glass bottle washing machine.
1. principal features
the machine contains the inner layer washing machine , the outside remove labeling machine , and the soaking machine etc . and we could dispose soaking groove and electric control system , with the characters of high efficiency of washing bottle , low bottle –broken , rate ,saving water and electricity .
2. principal parameter
bottle specification
bottle outside diameter
56-64mm
bottle height
140-220mm
produciton capability
3000-4000 bh
lnner layer washing machine
main motor power
1.1kw
inside washing motor
0.55kw
inside washing motor
505rmin
pressure of water supplying
0.3-0.4mpa
bottle feeding speed
7.24mmin
driver plate speed
7.28rmin
outer size
1750×1320×1320mm
weight
1100kg
outside remove labeling machine
orbit motor
0.75kw
orbit speed
11.13rmin
outside washing motor
0.75kw
water pump motor
0.37kw
water consumption
2.8m3h
outer size
2900×800×1350mm
weight
600kg
steeper
liquid temperatrue
45-65oc
solution concentration
1.4%
outer size
2400×2650×2400mm
weight
450kg
