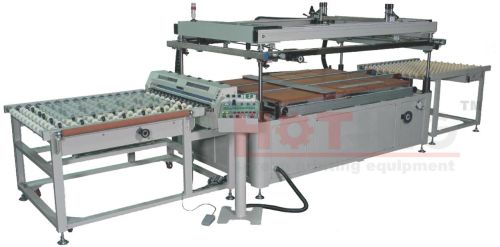

Automatic Glass Screen Printing Machine

Application scope:
This series is suitable for automotive glass, decorative glass, furniture glass, engineering and construction glass etc printing.
Specification:
1. Feeding, positioning, accurate positioning, printing, unloading process all automatic work; Easy operation, quality assurance
2. Use the synchronous antiskid elevating conveyor, smooth transmission, low noise, long life
3. Convenient adjustment and maintenance
4. Secondary to repeat positioning, using the plate line and multipoint positioning method, to ensure that the various shapes of glass registration precision
5. Balanced pressure, automatic recharge portable adjustment printing blowing system, ensure uniform fine printing
6. Printing transmission adopts imported linear guide rail and a synchronous toothed belt, running smooth, stepless speed regulation
7. PLC electrical control system
8. Equipped with automatic alarm device and the perimeter security protection switch, and can choose a pneumatic mechanical safety protection devices, to ensure safety in production
Parameters:
Model
PGA-1016
PGA-1224
Max printing size
1600 X 1000mm
2400 X 1200mm
Min printing size
600 X 600mm
600 X 600mm
Printing table size
2100 X 1400mm
2900 X 1600mm
Printing speed
210pcshour
180pcshour
Max frame size
1500 X 2200mm
1700 X 3000mm
Printing pressure
0 ~ 60kgf
0 ~ 60kgf
Scraper angle
60° ~ 90°
60° ~ 90°
Scraper Bias
6°
6°
Frame fixing
Vacuum cylinder clamps
Air pressure
6kgfcm2
6kgfcm2
Weight
1600kg
1800kg
Dimension
2950 X 2100 X 1800mm
3650 X 2200 X 1800mm
★ Special specification can be made for customized size
