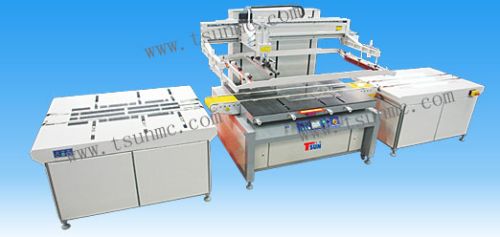

Applicable for printing of glass, such as electric glass, decorative glass colorful glittering glass .
Features
●The printing shelf up and down by electricity,running fast and stably, and precise positioning.
●With automatic output function, connected with dry line, ensures the quality of product and improves the production.
●With upblowing function，ensure printing material not to be damaged, with vacuum adsorption device for light material , easy to position.
●With servo system of the printing and off-screen , guarantee high speed, high precision and stable printing.
MODEL TS8012GL TS8016GL TS8020GL TS8026GL
MAX GLASS SIZE 800MM*1200MM 800MM*1600MM 800MM*2000MM 800MM*2600MM
MAX SCREEN SIZE 1050MM*1500MM 1050MM*1900MM 1050MM*2300MM 1050MM*2900MM
THICKNESS 2-19MM 2-19MM 2-19MM 2-19MM
TOTOAL POWER 380V50HZ4.5KW 380V50HZ4.5KW 380V50HZ4.5KW 380V50HZ4.5KW
TOTOAL WEIGHT 1200kg 1300kg 1500kg 1800kg
MACHINE SIZE 1800*1550*2200mm 1800*1550*2600mm 1800*1550*3000mm 1800*1550*3600mm
