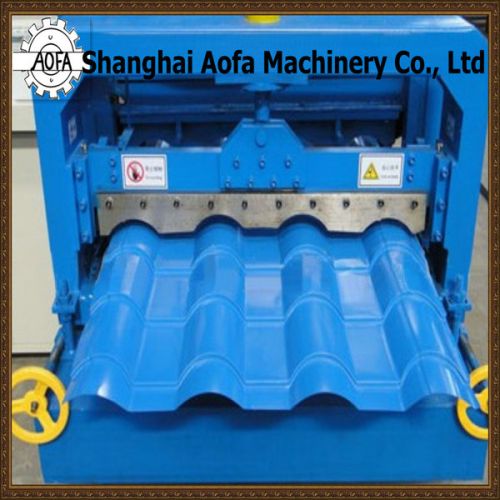

Automatic Glazed Tile Roll Forming Machine

We are offering automatic glazed tile roll forming machine. Machine components: manual uncoiler 1unit roll forming device 1unit cutting device-1unit pressing device 1unit techincal description: no item parameter 1 suitable material type color coated /galvanized steel thickness(mm) 0.3-0.8 or according to customer' requirements yield stress(mpa) 235-345 or according to customer' requirements 2 product specifications cover width (mm) 950 or according to customer' requirements length any length 3 power requirement type 380v/3ph/50hz or according to customer' requirements main motor power(kw) 5.5kw hydraulic power 4kw 4 step distance 100-400(mm) adjustable according to customer' requirements 5 working speed(m/min) 8-12 (excluding cutting time) 6 decoiler drive type manual max. Capacity(t) 5t suitable coil id(mm) 508-610 suitable coil od(mm) 1200 max coil width(mm) 1250 7 forming stand 13 8 forming shaft diameter(mm) 80mm 9 shaft material high grade no.45 steel after treatment 10 roller material 45# steel with hard chrome plated 11 cutter material cr12 with quenching treatment hrc55-60°c 12 cutting type automatical hydraulic cutting 13 control system plc frequency control system with touch screen 14 output table it is simple and used to load finished product. terms payment type: 30% t/t prepaid and balance should be paid before loading delivery time: 30 working days after receiving prepaid guarantee period: 18monthes free service/ pay service all the machine life installation and training: if buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting,we will send you user manual and video to teach you to install and operate. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
