Automatic Grade Rotary Arm Pallet Stretch Wrapping Machine

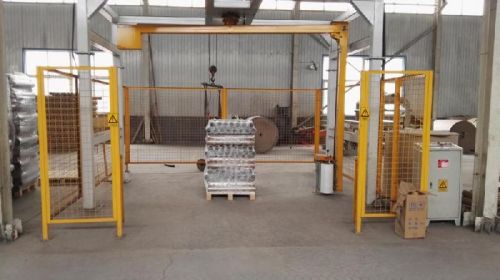

R1800F Rotary arm pallet wrapping machine is a machine that arm rotates around the load, delivers the film around the load.These rotary arm pallet  wrapping machine allow loads to be wrappedwhile stationary on the floor.Designed for heavy or unstable loads.Film provides extra support while the products are being transported&storaged to protect them from tip,spill or become damaged.Additionally,wrapped loads can easily be separated and identified.  Control System:OMRON PLC.Photo-eye pallet height sensor.0-9 separate top,bottom&up-down wrap count selectors.Photoeye sensing delay .Reinforce wrap allow more wrap on same location..Film Tension Control adjustment on the panel.3-15RPM/min arm variable a speed by frequency changer.Separate variable carriage up/down speed.Cycle pause capability.Separate start,reset and emergency stop buttons.Manual carriage up/down switch.Turntable jog button.Flash light for machine in operation.Rotary arm stop by safety bumper and reflection photoeye sensing and obstacle in the rotating area.Film Carriage System:Powered pre-stretch system up to 300%.Film delivery variable speed by separate DC Drive Motor.Film dancer-bar with variable speed output.Rotating Power slip ring provide power required for carriage drive on rotary arm. Pallet Wrapping Machine Arm DriveSlewing Bearing drive system:Soft start /stop.Position arm alignment.Pallet Wrapping Machine Conveyor:Heavy Structural steel Frame construction.All rollers driven.
