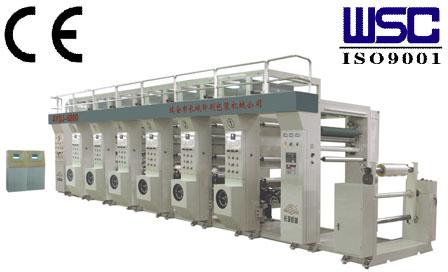

Automatic Gravure Printing Machine

We are offering automatic gravure printing machine,
application:
it is suitable for multicolor printing in pe,pet,bopp,cpp,pvc film, paper and so on.
performance and feature:
1.newly design with economic and practical.
2.adopts frequency converting in host machine for unwinding&rewinding
3.auto tension control
4.double cylinder pressing
5.ink cutter pressing pneumatically
6.fully closed and shiftless dry oven
7.accurate color registering
8.fast speed
9.this machine is the best choice for medium and small enterprises.
technical data:
material width
400-800mm
max mechanic speed
120m/min
printing speed
100m/min (roller dia. Φ200mm)
plate cylinder diameter
φ100mm-φ300mm
register accuracy
vertical 0.15mm horizontal 0.15mm
unwind & rewind diameter
≤φ600mm
power
about 125kw
voltage
ac380v, 3 phase, 4 lines
weight
about 15000kgs
dimension (lxwxh)
10000x3300x3100mm (6 colors)
pls kindly contact us if your demand data is different with ours, we can customize the machine according to your requirement within our ability.
our advantages
1. Established in 1986, more than 30 years machine experience
2. With iso 9001:2000, ce certificate
3. All machines will be examined and tested before delivery by professional engineers (with more than 30 years machine experience)
4. Professional technology to customize the machine as customers’ special requirement.
