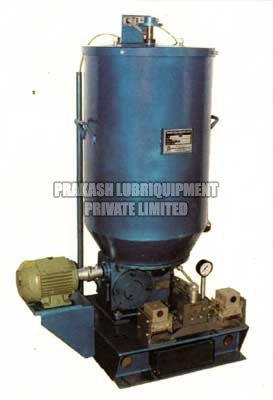

Automatic Grease Lubrication System

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are involved in supplying and designing of Automatic Grease Lubrication System that is specifically manufactured for pumping grease to the dose feeders installed at the lubricating points in the end type dual line grease lubrication system. Grease from the reservoir flows into the plunger pump driven by electric motor and is pumped through direction control valve to one of the two pipelines. We provide superlative Automatic Grease Lubrication System to the customers as per their requirements.

View More Details

Send Enquiry

Company Information

Prakash Lubriquipment Private Limited

Ghusuri, Howrah, West Bengal

View Number

Member Since 15 Years
Nature of Business Retailer
GST No. 19AABCP8235C1ZI

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Special Features	Dual line heavy duty automatic Centralized grease lubrication (CGL) Station end type Smooth performance D S D design Easy to operate Sound construction Highly sophisticated technically integrated mechanism
Applications	Cement Plants Steel Plants Power industry Paper Industry Engineering industry

Specifications

Pump Type	Plunger Pump
Capacity	150 cc/min - Model AGS 150 300 cc/min - Model AGS 300 500 cc/min - Model AGS 500 1000 cc/min - Model AGS 1000
Plunger Diameter	22 mm
Plunger Stroke	32 mm
Plunger Effective Stroke	10 mm 16 mm 26 mm 20 mm
Worm Ratio	20 : 1 (Upto 500 cc.min) 10 : 1 (For 100 cc/min))
Working Pressure	100 - 300 kg/cm² (max)
Grease Consistency	Upto NLGI No. 2
Reservoir Capacity	70 Litres / 140 Litres
Tell-tale Rod Marking	20 Litres (Each Division)
Solenoid Value Type	4 Way (Heavy Duty)
Solenoid Value W. Pressure	300 kg/cm² (max)
Solenoid Pull	6.75 kg.
Electric Motor	1.5 H.P / 2.0 H.p 1500 RPM (nom.)
Power Supply	440 Volts A.C. 50 c/s.
Control Panel Supply	220V AC 50 c.s.
Net Weight	320 kg. (approx)
