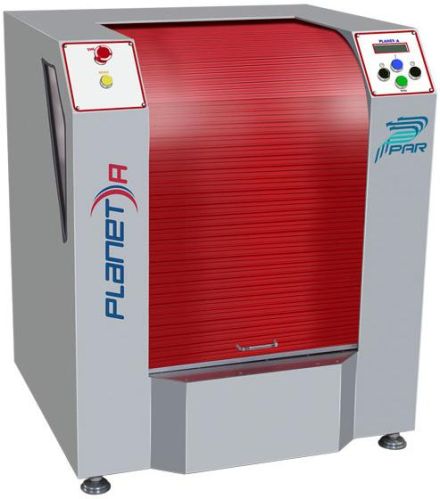

Automatic Gyro Mixer Machine

• Automatic clamping and de-clamping of cans
• Containers are clamped centrally, no adapter required
• Sliding out type Bottom Table for easy loading/unloading of cans
• Dual speed bi-axial, gyroscopic rotating action for complete mixing
• Provision for manually releasing container incase of power failure during mixing
• User-friendly operator console & clear LCD to display messages
• Transparent Swing Door fitted



(Plastic Shutter Door available optionally)



• Machine Type : High Speed Paint Mixer
• Timer : 0.5 to 9.5 minutes electronic programmable timer
• Mixing Capacity : 20 Litre and mixing weight upto 40 Kgs
• Motor Rating : Motor 1HP, Three Phase, 1425 RPM
• Power Supply : 220v AC, Single Phase, 50/60 Hz
• Machine Weight : Net 250 Kgs and Gross 280 Kgs
• Machine Dimension : Height 1060mm, Width 880mm, Depth 830mm
• Can Size : Maximum Can Height / Diameter 410mm / 315mm and Minimum Can Height 120mm
