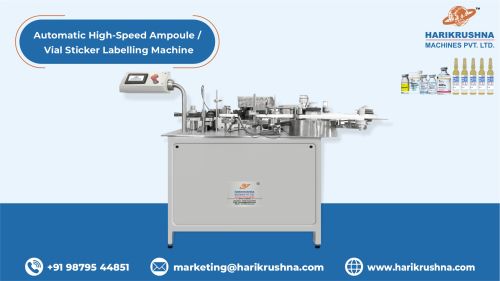

Automatic High-Speed Ampoule and Vial Sticker Labelling Machine

Automatic High-Speed Ampoule / Vial Sticker Labelling Machine

The Automatic High-Speed Ampoule / Vial Sticker Labelling Machine Consists of the Main Structure, Product in-feed Tray, in-feed Screw, Rotary Star Plate

Key Features :-

•     The machine is manufactured or developed accordance with GMP standards
•     Structure made of SS 304.
•     All moving parts of the machine covered by safety guards of SS.
•     All expose parts of MS are powder coated / electro less nickel plated.
•     System equipped with imported AC frequency variable drive for variable speed with constant torque.
•     Product loading in in-feed tray to convey the product through in-feed screw.
•     Specially designed drive mechanism for Label Release.
•     Dispensing unit to dispense labels.
•     Reel mechanism (Size: 305 mm) to hang the roll with core ID of 76 mm (3″).
•     Break assembly to avoid variation during releasing of roll.
•     Various label position adjustment with the help of sliding pipe assembly.
•     Easy change over time is 15 to 20 minutes.
•     Wrap around mechanism (timing belt) to wrap the label on product.
•     Emergency stop switch.
•     Noise level Less than 62 DB.
•     Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC Drives, PLC & HMI (Keypad), MCB & relay “CE” make.
