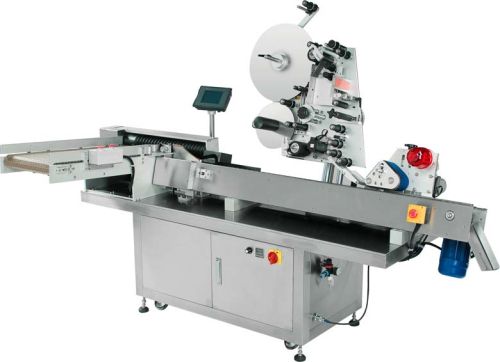

Contact SupplierWe are offering jt-215h automatic high speed ampoule labelling machine.
feature:
1. plc combined with human/machine interface digital lcd touch screen controller;
2. suitable for slender round bottle;
3. stainless steel frame construction and components are standard;
4. use screw to send bottle which makes smoothly and safely;
5. send bottles in the direction of vertical horizontal to feed stability,use easy and lowlabor strengh;
6. use sero motor to make high speed and good quality;
specification:
1. model no: jt-620s;
2. label width: 10-135mm;
3. labeling speed: 30-350bottles/min;
4. production diameter: 15-150mm;
5. label height: 15-180mm;
6. labeling accuracy: ±1mm;
7. power supply: 4200w , 110v/220v , 50/60hz;
8. machine size: l2880 * w1700 *h1580 mm;
9. reel inner diameter: 75mm;
10. reel outer diameter: max 360mm.
