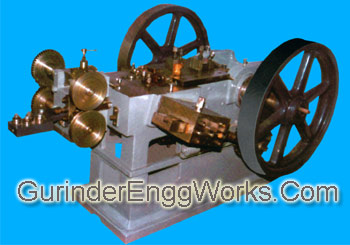

Contact SupplierGurinder Double and Single Stroke Solid Die and Two Piece Cold Heading Machines are fully automatic for cold heading screws, bolts, rivets & similar products. These Heading Machines are easily operated by unskilled labour with little training. All Parts are made of high quality steel and costing.
GEWH/ No | Length of blank | Wire Gauge of Dia of Bolt |
Production Pcs/minute |
Motor H.P. & R.P.M. |
1. | 1/4" - 1" | 14/9 - 1/16" 1/8" | 100 - 125 | 1.5 x 960 |
2. | 3/8" - 1 1/2" | 12/9 - 1/8" - 3/16" | 70 - 100 | 2 x 960 |
3. | 1/2" - 2" | 3/16" - 1/4" | 60 - 80 | 5 x 960 |
4. | 3/4" - 3" | 1/4" - 3/8" | 50 - 60 | 7.5 x 960 |
5. | 1" - 4" | 5/16" - 1/2" | 40 - 45 | 15 x 960 |
6. | 1 1/2" - 5" | 3/8" - 5/8" | 30 - 35 | 25 x 960 |
7. | 2" - 6" | 1/2" - 3/4" | 25 - 30 | 40 x 750 |
