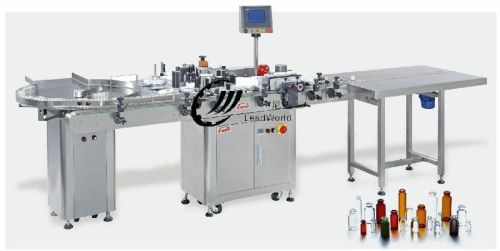

Automatic High Speed Vertical Labeling Machine

We are capable of make on-time deliveries of the product range that we keep safe in our massive warehouse. In order to ensure zero defects to the products, we have installed automated warehousing system in our spacious warehouse. The system is supervised by well-trained personnel only.

Outline : KL-600 High-speed Vertical (Vial) Labeling Machine is designed for the pharmaceutical factory produce and Control penicillin bottle labeling, also can be used for diameter less than 30 small round bottle labeling.
Characteristic

• KL-500 is mainly composed of SUS304 chassis; feeding rotary table; split-bottle; inverted bottle of removed; mesh belt conveyor; sponge wheel; host header; receiving platform etc. Use Siemens PLC, touch screen; senro motor as the main components, control devices run at high speed. Equipment safety, efficiency, and stability; comply with GMP, CE specifications.

• Friendly operation interface, Easy setting, Main Function: Product Count , Output Setting, Parameters Memory, Equipment State Monitoring, Device Failure Automatic Shutdown,AIarm Fault Location and Help Information.

Technical parameters

• Voltage Specifications : AC220V 50/ 60HZ single·phase
• Power : 1.7kw
• Labeling Speed : Max 100-400 bottles /min
• Labeling Accuracy : lmm (except the error between adherend and label)
• Printer with a gas source : 5MPa
• Printer Speed : 100-450 bottles /n1in
• Suitable Container : length 25-95 mm, diameter 12-30 mm
• The applicable label range : height 20-80mm, length of 25-90 mm
• Maximum Label Supply : EMZO mm, paper roll inner diameter 76 mm
